HSD

HSD–500

Rapid feed rate 30m/min

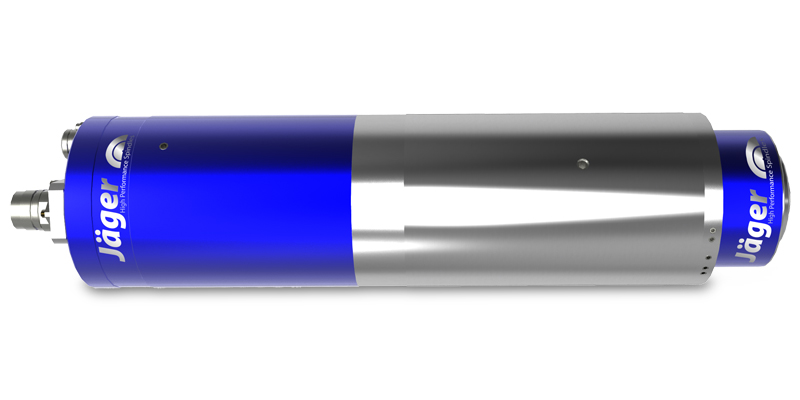

Jager High Performance Spindles avaliable

InquiInquiryry Catalog

View PDF

Travel (mm)	X-axis	500 mm
	Y-axis	400 mm
	Z-axis	350 mm
Distance (mm)	Spindel nose to table	150-500 mm
Table	Table (LXW) (mm)	600 x 500 mm
	Dimesnsion of T-slot (mm)	4 x 18 x 110 mm
	Max. table load (kg)	350 kgs
Spindle	Build-in spindle (HSK-E32/E-40/ISO-10)	30000 rpm/40000 rpm/60000 rpm
	Spindle motor- cont/ 30min (kW)	7.5-9 kW
	Spindle cooling	Habor water type closed circuit refrigeration unit width digital control.
ATC	ATC-Genva type (Fully enclosed)	16 tools
Feed Rate	Rapid feed rate-X/Y/Z	30/30/30 m/min
	Axis feed motor- X/Y/Z	2.0/2.0/2.0 kW
	X ballscrew (dia. x pitch)	32 mm x 10 mm
	Y ball screw (dia. x pitch)	32 mm x 10 mm
	Z ball screw (dia. x pitch)	32 mm x 10 mm
	Linear guide width ( X/Y/Z)	35mmx2 x 30mmx2 x 35mmx2
Machine	Power consumption KVA (Transformer)	25KVA
	Pneumatic Supplier kg/ cm2	5.5-6.5kg/cm2
	Coolant tank capacity	210liter
	Floor space requirement	2150 x 2066 cm
	Floor space requirement (with conveyor)	3300 x 2066 cm
	Machine weight	3000kgs
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.

Standard

Tools kit
LED work light
3-step warning light
Leveling blocks & blots
Fully enclosed splash guard
Rigid Tapping
Spindle coolant nozzle system
Spindle Air Blast
Central Lubrication system
Auto interrupt& power off system
Portable hand wheel
Operation manual, Maintenance manual
CNC Manual
Test Report in CD format
Air gun
Coolant gun
Guideway cover (X,Y,Z)
Heat Exchanger for Electrical Cabinet
Safety door
Spindle coolant system
Cutting air blast
Cutting coolant system
Spindle oil chiller

Optional

Oil skimmer
CTS 20-70BARS
Linar scale
Oil mist coolant system
Oil mist collector
Belt type chip conveyor
Screw type chip conveyor
Workpiece measurement system
Auto Tool touch probe
Auto Tool Laser probe
A/C Cooler for Electrical Cabinet
4th Axis Rotary table
5th Axis Tilting Rotary table
Heavy Duty coolant pump
CE
Paper Filter
Machine Height 150mm More

Mitsubishi M70, M720, M730
Fanuc 0i-MD, 31i
Siemens 828D, 840D
Heidenhain iTNC620, iTNC530
Custom
