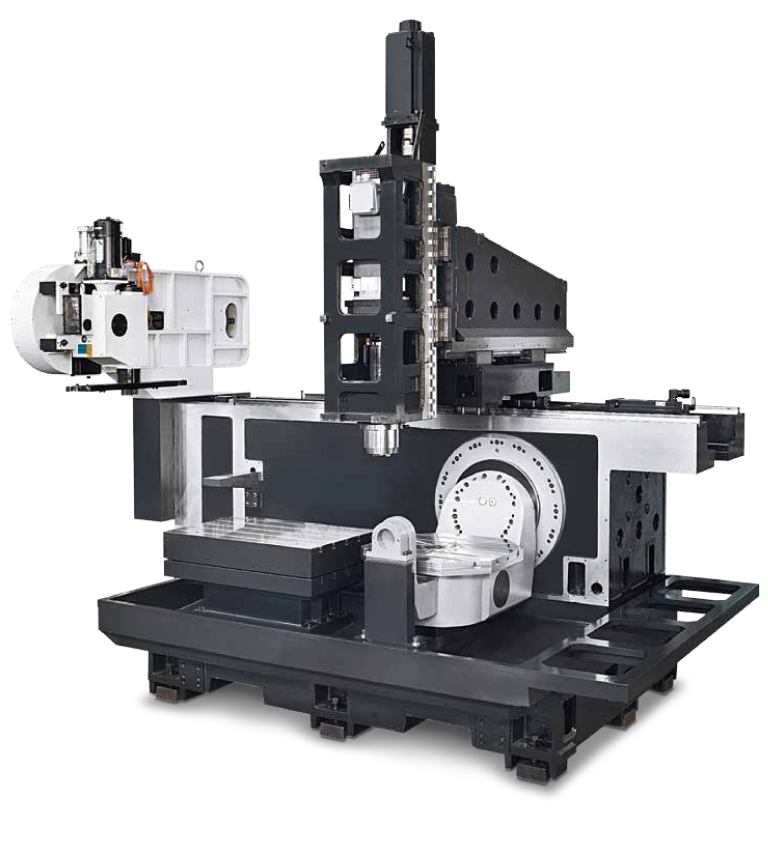

HIGH EFFICIENCY 5 AXES MACHINING CENTER ERGONOMIC DESIGN
Front and side access for easy loading and operation
Efficient smart management
Encoders on all axes
THK roller guideway (JAPAN) X, Y, Z 45mm.
Double nut ball screw, liquid cooled, choice of Arm type ATC
24 / 30 / 32 / 40 / 48 / 54 / 60 position ATC

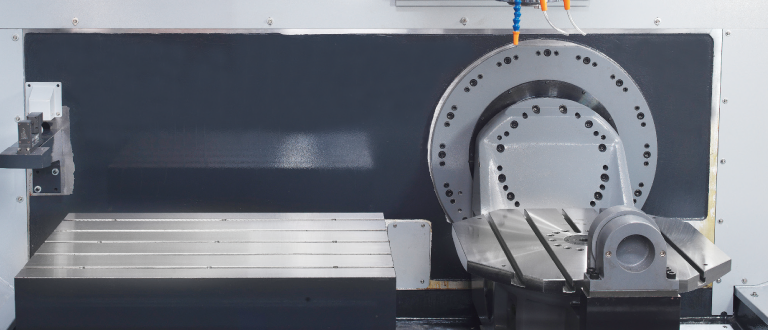

Flexible design, double work table may be used as a 4+1 or 5 axes machine easy to machine extra long workpiece high load capacity on fixed table.

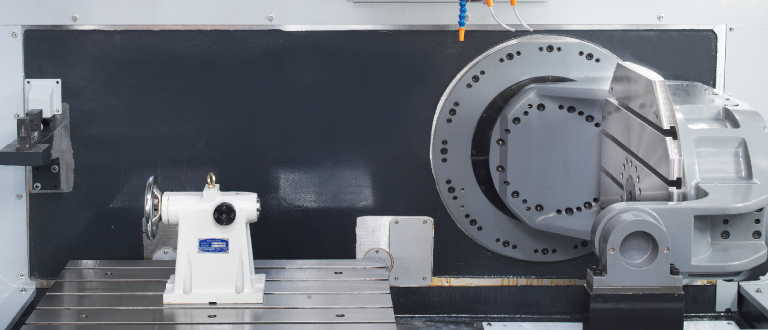

Fixed work table may be fitted with various accessories, tailstock for shaft machining center.
Standard
- Spindle speed 12000rpm
- Spindle oil chiller
- Spindle bearing purge
- Programmable cutting air blast system
- Coolant gun
- Air gun
- Full enclosed splash guard
- Large table size 650mm
- Interlock front/ side door
- Mechanical oil/coolant separator
- Automatic tool changer
- Spindle taper: #40(DIN, BT, CAT)
- 32 station tool magazine
- Roller linear guideways
- Z-axis motor with brake system
- LED lamp
- M30 power off
- Heat exchanger for electrical cabinet
- Tailstock for GTX-1520 / 2520
Optional
- Coolant Through Spindle (CTS)
- Programmable cutting coolant nozzle
- Coolant cooling system
- Chain type chip conveyor
- Chip cart
- Chip flushing system
- Laser tool length measurement system TL Micro 200
- Contact type tool length measurement system TT160
- Workpiece measurement kinematic system TT740+KKH100(250)
- Air supply for clamping fixture
- CE conformity specification
- Round metal plate type oil skimmer
- X / Y / Z optical linear scale
- B / C-axis optical encoder
- Air conditioner for electrical cabinet
- Transformer
- HSK 63 20,000rpm spindle (Built-in type)
- 15000rpm direct driven spindle
- Software for crash protection
- Mitsubishi M80, M830
- Fanuc 0iMF, 31i
- Siemens 828D, 840D
- Heidenhain TNC620, iTNC640
- Fagor
